1.Can jamming 14 bands, according to the need to control the frequency band to be blocked.
2.Has a good heat dissipation system, can work continuously for a long time.
3.Jamming range up to 80 meters.
Notices:1. Before linking all the antenna, power supply shall not be switched on at first.Non taking off antenna when the mainframe is in the working condition.
2. The jammer shall be installed in the position with good ventilation. And large-scale things shall be avoided to ensure to the shielding effect.
3. When use the jammer outdoors, preventing water shall be taken into consideration.
4. Antenna shall be used vertical to the ground.
5. If you used in car,Please make sure the car output adapter is DC12V, this machine only can be working on DC12V,The Minimum output power of storage battery is 150Watt.

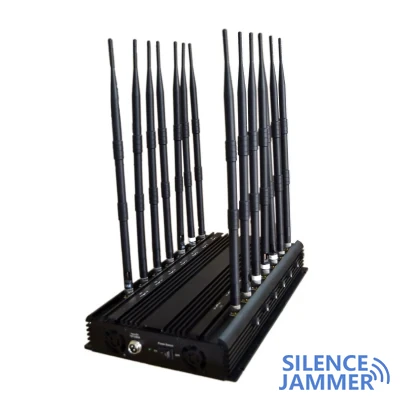

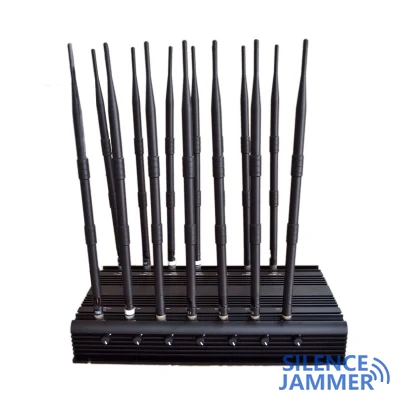

| Model | EO14001 |
| Jamming frequencies |
CDMA: 850-894MHz GSM: 925-960MHz DCS: 1805-1880MHz GSM: 1920-1990MHz 3G: 2110-2170MHz GPS: 1570-1580MHz WiFi 2.4G: 2400-2500MHz VHF: 135-174MHz UHF: 400-470MHz 4G LTE: 725-770MHz 315MHz 433MHz GPS(L2-L5): 1170-1280MHz 4GWimax: 2300-2400MHz LOJACK: 160-175MHz |
| Jamming radius | Up to 80 meters |
| Total output power | 35W |
| Voltage | 100-240V AC |
| Operating temperature | -10℃ to +50℃ |
| Operating humidity | 5% to 80% |
| Device size | 470mm*420mm*115mm |
| Device weight | 6kg |
