This 12-antenna 5G signal jammer with an output power of up to 79w can shield 5G/4G/3G/2G full-band mobile phone signals, WiFi2.4G/5G signals, GPSL1 signals and LOJACK signals within an interference radius of 10-80 meters.

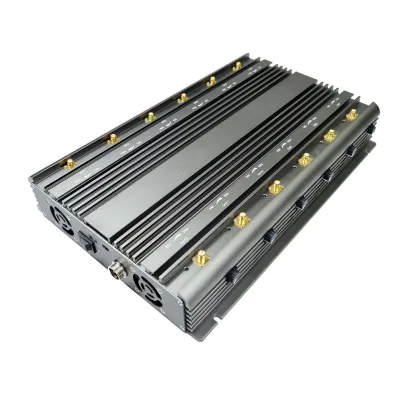

This WIFI 5G cell jammer not only achieves high power output, but also has a high-efficiency aluminum alloy radiator that provides a smooth heat dissipation experience.
The M12 full-band mobile phone signal blocker adopts an independent module design, each channel has a frequency source, and the average power of each frequency band is 3-10W.
Advantage:| 1.High output power and interference range | The device is designed with 12 channels, each channel output power is between 3-10 watts, the total power can reach 79 watts, and the interference range can reach 80 meters, the specific effect depends on the signal strength. |
| 2.Omnidirectional antenna and frequency coverage | Equipped with an external high-gain 3-5dBi omnidirectional antenna, all transmission frequencies only cover the downlink to ensure the signal jamming effect. |
| 3.Power adapter and safety | Built-in AC110-240V to 24V adapter, designed to be safe and easy to use, suitable for various voltage environments. |
| 4.Excellent cooling system | M12 full-band mobile phone 5G jammer equipped with 5 fans, with good heat dissipation capacity, ensuring the stability of the device during long-term work. |

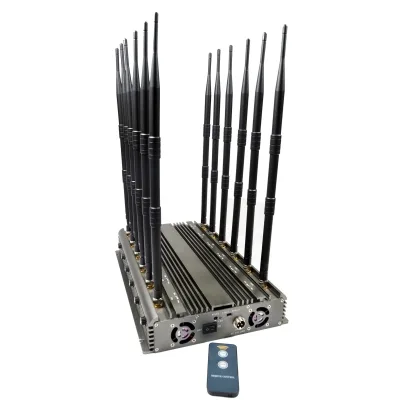

| 5.Flexible band control | The device can be easily controlled within a range of 2-5 meters through the infrared remote control, and any single band can be adjusted or turned off independently, and the modular design is easy to maintain. The damaged band can directly replace the PCB without professional equipment. Welcome ODM and OEM orders, free to choose any 12 bands. |
| Model | CKJ-1903L12 |
| Jamming frequencies |
5G600/5G1500:617-685 or 1427-1518MHz CDMA/GSM/LORA:851-894 /900-960MHz DCS/PCS:1805-1880/1920-1990MHz 3G:2110-2180MHz 4GLTE Low:698-803 or 758-821MHz 4GLTE High:2496-2690/2570-2690MHz WIFI2.4G/4G2300:2400-2485/2300-2485MHz GPS/Glonass L1:1560-1610MHz WIFI5.8G/5.2G:5725-5850 or 5125-5350MHz 5G3.5G:3400-3600MHz 5G3.6G:3600-3900MHz VHF/LOJACK:135-175MHz |
| Power supply | Build-in AC adapter 50 to 60Hz, (AC110-240V IN, DC24V working) |
| Dimension | (length ,width, height) 355x 238x 60mm（not Include Antenna） |
| Net weight | 5 kg |
| Total power | 79W |
| Shielding radius | (10-80) meters At -75dBm |
