The anti drone device TX-WRJ03 adopts the 868/915MHz, GPSL2 1.2GHz, GPSL1 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz 6 channel RF jammer module inside, to effectively interfere the most kinds of drones in the market including the DJI, Phantom, Parrot, Autel, Skydio, etc.
In the interference mode, TX-WRJ03 will force the drone land slowly or returning home by the different operation ways.
It is widely applied to the government department, military team and station, police system, etc. People use it to guard the air security from the drone photographing and attacks.

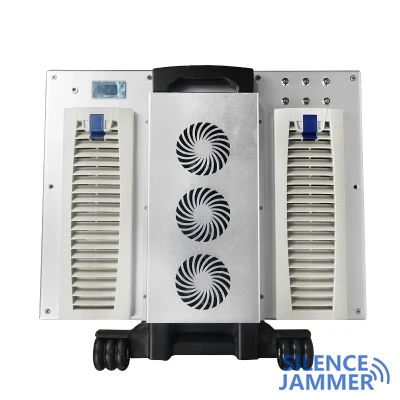

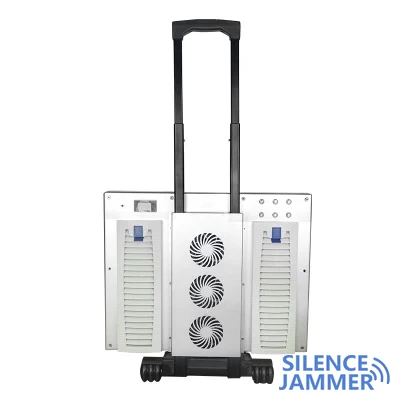

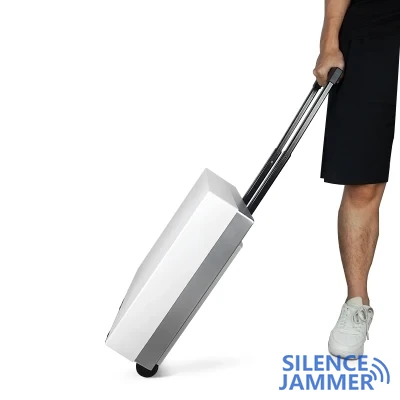

Product Feature:1. Easy transferred with the trolley case moving design.
2. Durable out shell of aluminum alloy and military resin.
3. Ultra large jamming range up to 1500 to 3000 meter.
4. Ultra high output power over 200W to jam UAV fast in 3 second with built-in directional antenna.
5. 6 band Frequency jamming 868/915,GPSL1,GPSL2WIFI2.4 WIFI5.2G WIFI5.8G; Separate control buttons.
6. IP65 water/dust proof level to resist terrible outdoor working environment.
7. Lithium battery lasts 1-1.5 hour; Standby status over two weekend.
| Model | EOTX-WRJ03 |
| Jamming frequencies |
RC868/915: 850-920 MHz 1.2GHz: 1100-1300 MHz 1.5GHz: 1560-1620 MHz 2.4GHz: 2400-2485 MHz 5.2GHz: 5150-5350 MHz 5.8GHz: 5725-5850 MHz |
| Total output power | About 200W |
| Large jamming range | About 1500-3000 Meter(FH frequency drone is 1000meter such as DJI mavic3) Depends on real signal environment |
| Power supply | AC100-240V/DC24V |
| Operating temperature | -22℃ to +70℃ |
| Charging time | 3-4hours (Built-in Lithium Battery) |
| Device size | 450*300*100mm |
| Device weight | 13.0kg |
| Packing List | 1.Signal Jammer （with trolley case design）2.Power Wire 3.AC adapter |
